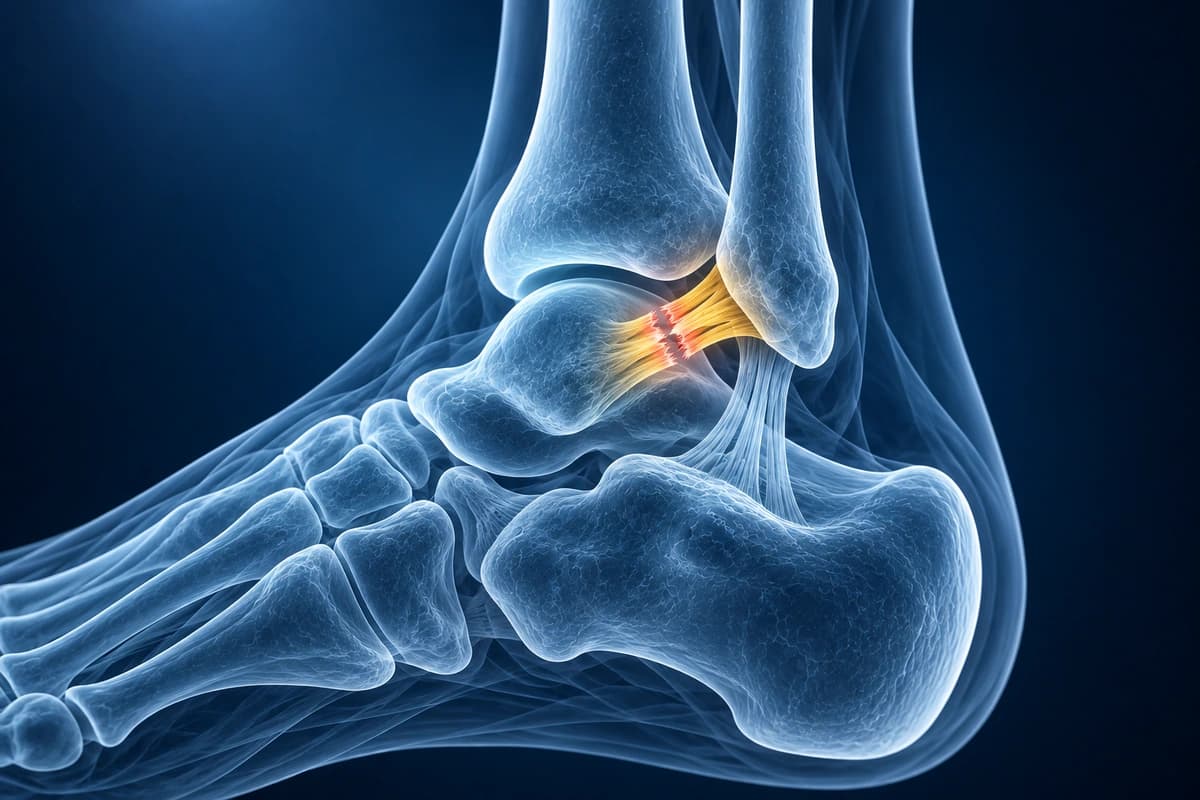

Ankle sprains are the most common musculoskeletal injury, with lateral ligament sprains accounting for approximately 85% of cases. The anterior talofibular ligament (ATFL) is the most commonly injured, followed by the calcaneofibular ligament (CFL) and posterior talofibular ligament (PTFL). MRI is valuable for evaluating ligament integrity, identifying associated injuries such as osteochondral lesions, and grading sprain severity. Our AI consortium analyzes all three lateral ligament complexes, the deltoid ligament medially, and associated bone and cartilage structures.
A useful ankle MRI review does more than name the torn ligament. It checks whether the ATFL or CFL tear is partial or complete, whether the deltoid ligament or syndesmosis is involved, and whether the same injury caused an osteochondral talus lesion or a peroneal tendon tear. For grading language, compare the ATFL and CFL grading guide.
Grade 1 sprains show mild perifascicular edema on fat-suppressed proton-density sequences with fully intact ATFL fiber continuity. Grade 2 demonstrates partial-thickness tearing with interstitial signal hyperintensity on PD-fat-sat but a residual continuous ligament band. Grade 3 reveals complete fiber disruption — a wavy, thickened, or absent ATFL on axial PD images — often accompanied by CFL disruption and lateral talar dome bone contusion on STIR sequences. AI models correlate these signal patterns with clinical grading scales to guide conservative versus surgical management.
Axial proton-density fat-saturated (PD-FS) sequences at 3 mm slice thickness provide the highest sensitivity for ATFL and CFL signal abnormality. Coronal PD-FS images complement the axial plane by showing ligament width and caliber changes. A 3 T field strength with a dedicated ankle coil improves resolution. STIR sequences in all three planes are valuable for bone marrow edema and peroneal tendon sheath fluid, which co-exist in high-grade sprains.
Ottawa Ankle Rules guide initial X-ray use to exclude fracture. MRI is recommended when symptoms persist beyond 4–6 weeks despite conservative management, when clinical instability suggests syndesmotic injury, or when osteochondral lesion of the talar dome is suspected. AI-assisted MRI review adds value by simultaneously assessing ATFL, CFL, syndesmotic complex (AITFL, PITFL, IOM), peroneal tendons, and articular cartilage in a single study.
